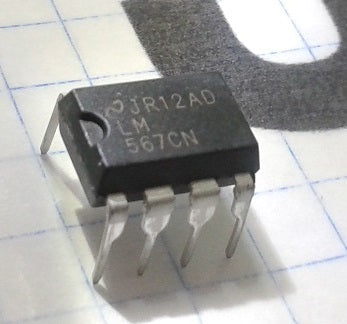

LM567CN Tone Decoder - (AD1868)

Description:

The LM567 and LM567C are general-purpose tone decoders designed to provide a saturated transistor switch to ground when an input signal is present within the passband. The circuit consists of an I and Q detector driven by a voltage-controlled oscillator that determines the center frequency of the decoder. External components are used to independently set the center frequency, bandwidth, and output delay.

Features:

-Package: PDIP-8

-Supply current: 12mA

-Power dissipation: 1100 mW

-Minimum supply voltage: 4.75V

-Maximum supply voltage: 9V

-Operating temperature range: 0°C to +70°C
