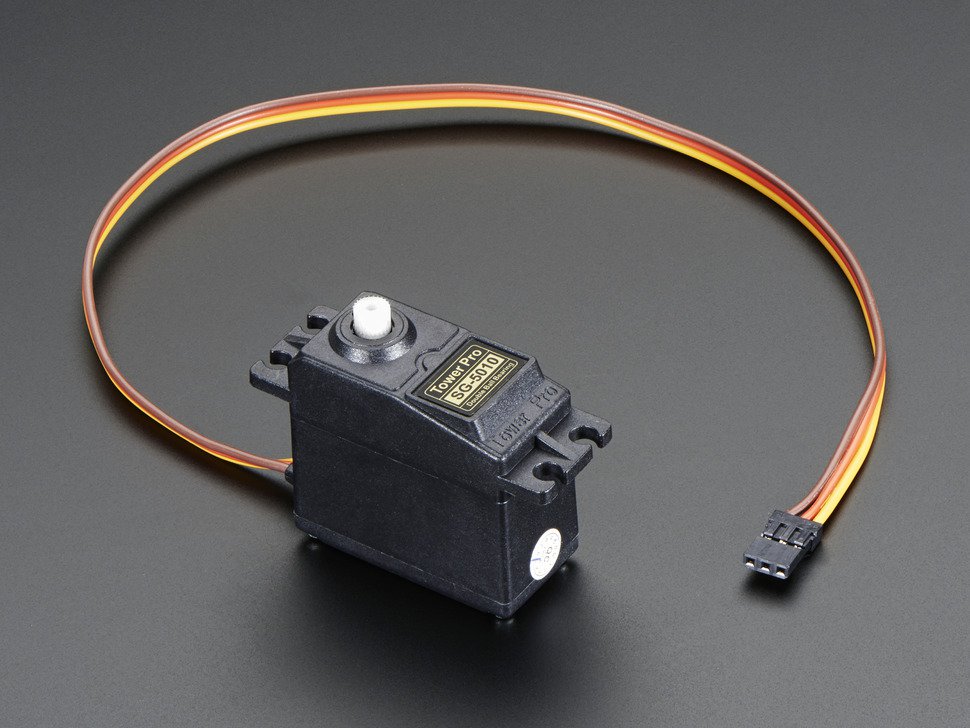

SG-5010 Standard Servo - TowerPro - (AD18293)

Description:

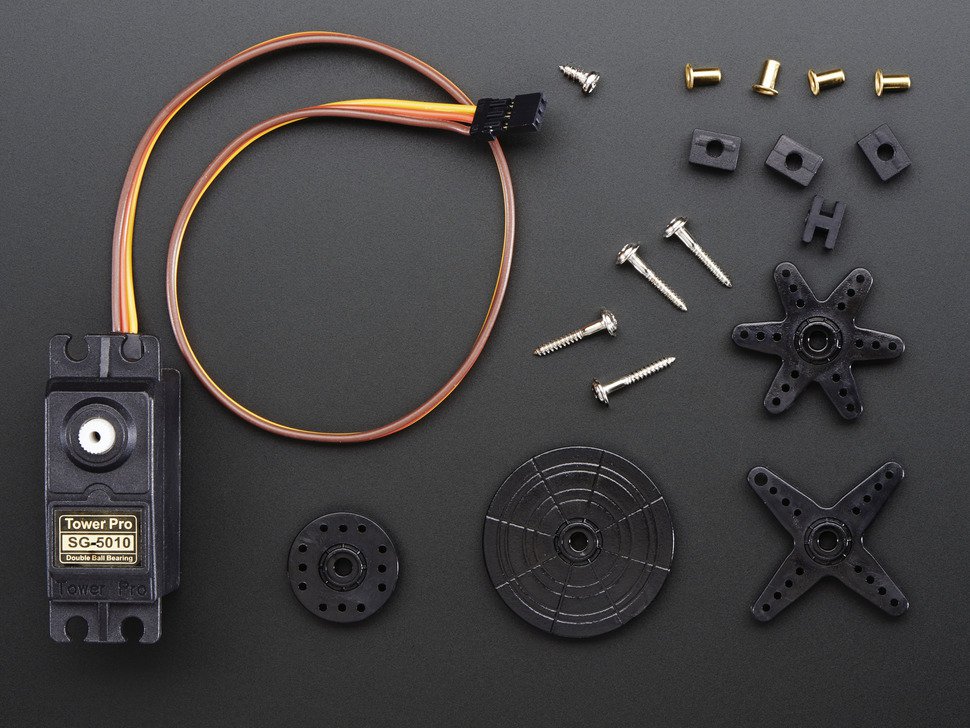

This high-torque standard servo can rotate approximately 180 degrees (90° in each direction). You can use any code, hardware, or library to control it. Ideal for beginners who want to move objects without having to build a motor controller with feedback and a gearbox. Includes 3 horns, as shown. They are not the best quality (which is why they are more economical), so they are not recommended for hobby aircraft. We currently offer the Tower-Pro SG-5010.

To control it with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included in the Arduino IDE (see an example sketch here). The "0" position (1.5 ms pulse) is the center, "90" (~2 ms pulse) is all the way to the right, and "-90" (~1 ms pulse) is all the way to the left.

Technical Details:

• Power: 4.8V - 6VDC max. (5V works fine)
• Average speed: 0.2 sec/60 degrees (at 4.8V), 0.16 sec/60 degrees (at 6V)
• Weight: 39 g (1.37 oz)
• Torque: At 5V, 5.5 kg-cm (76 oz-in) and at 6V, 6.5 kg-cm (90 oz-in).
• Dimensions in mm: (Length x Width x Height) 40 x 20 x 38 mm
• Spline count: 25
