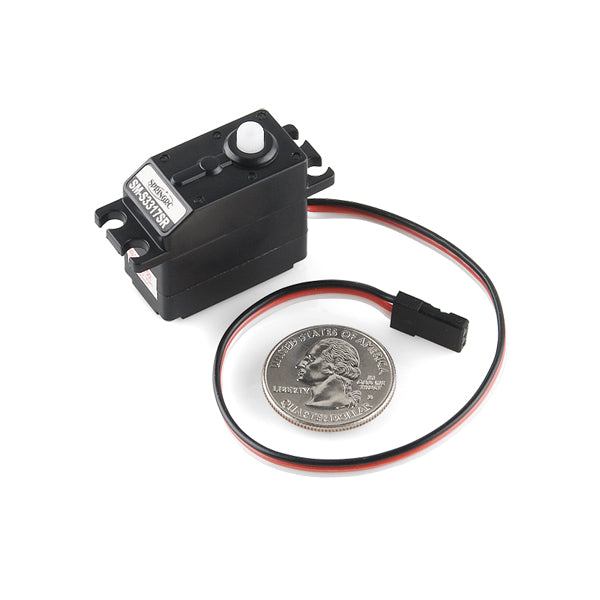

Servo - Generic Continuous Rotation (Micro Size) [ROB-10189] - (AD18234)

Description:

For all your mechatronics needs, we present a simple, high-quality continuous rotation servo. This servo can take 6 volts and deliver a maximum torque of 30.6 oz-in at 0.14s/60°. It includes a standard 3-pin power and control cable and all the hardware listed below.

Features:

• Voltage: 4.8-6.0 Volts
• Torque: 27.8/30.6 oz-in (4.8/6.0 V)
• Speed: 0.16/0.14 sec/60° (4.8/6.0 V)
• Rotation: 360°
• Dual Ball Bearing
• Plastic Gears

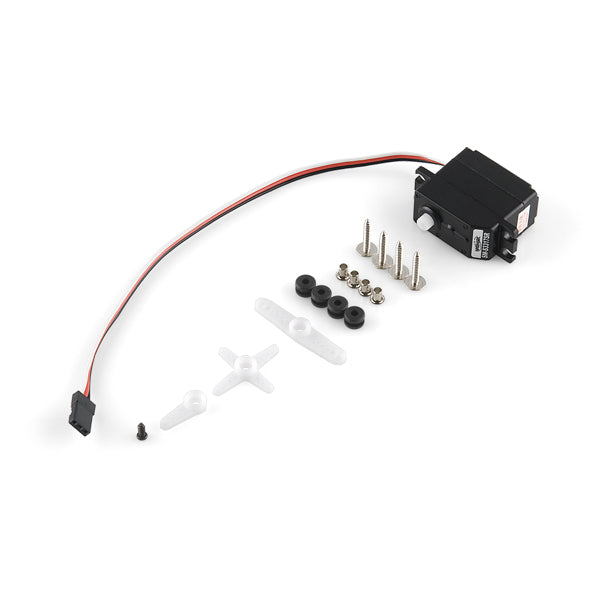

Includes:

• 1x SM-S3317S Full Rotation Servo
• 1x Single Arm Horn
• 1x Dual Arm Horn
• 1x Four Point Horn
• 4x Rubber Grommets
• 4x 2x15mm Phillips Screws
• 4x Brass Eyelets

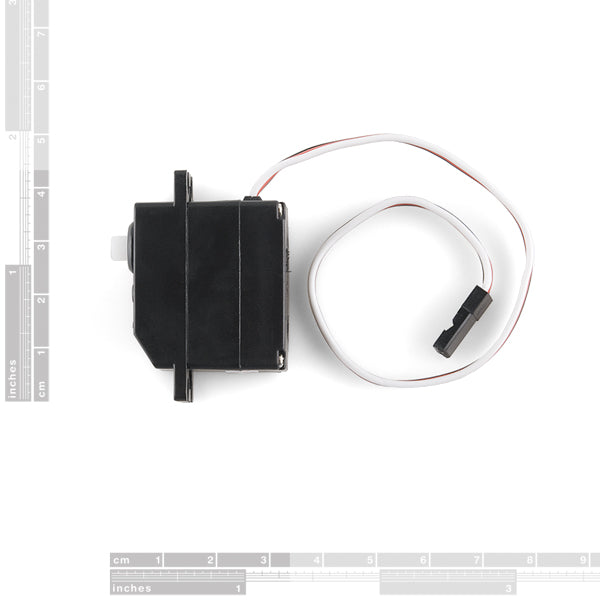

Dimensions:

• 31.3 x 16.3 x 28.5 mm
• Cable Length: 160 mm
• Weight: 18 g

Documents:

• Dimensional Drawing
• Datasheet (SM-S3317S)
