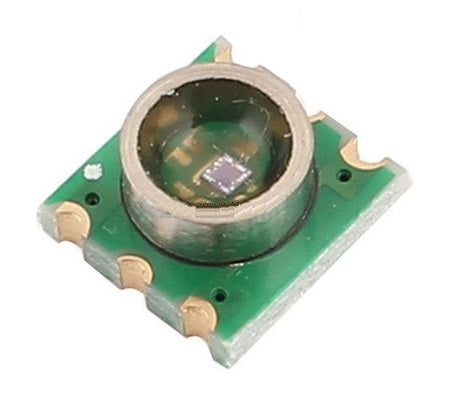

MD-PS002 Vacuum Sensor Absolute Pressure Sensor - (AD17957)

Description:

MD-PS002 absolute pressure sensor with a 15-100 PSI range and exceptional accuracy of ±0.2%FS. Its ultra-compact design (6.8x6.8x4.6mm) operates with 5VDC or 1mA constant current, providing mV output. It operates in extreme conditions from -40°C to +125°C, ideal for industrial and measurement applications requiring high reliability in confined spaces.

Characteristics:

- Model: MD-PS002

- Range: 15 PSI - 100 PSI (Absolute Pressure)

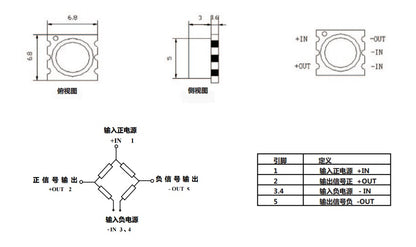

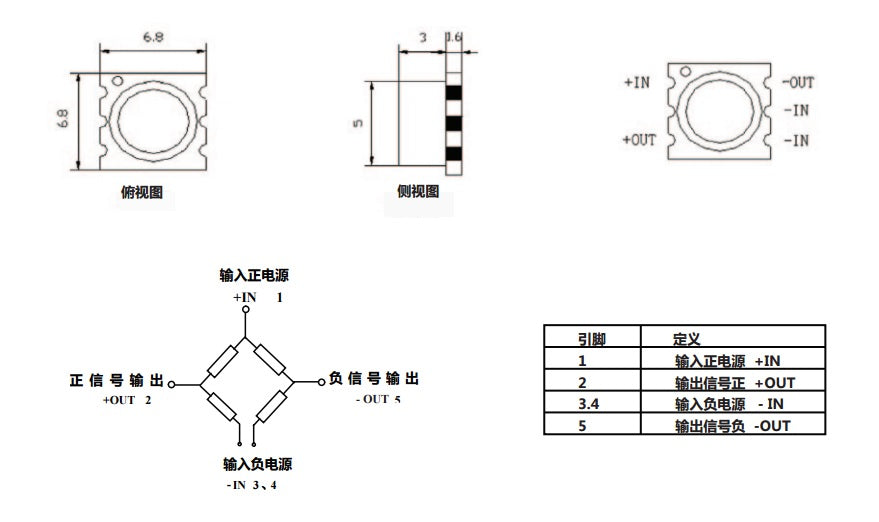

- Size: 6.8mm X 6.8mm X 4.6mm

- Working voltage: 5VDC or constant current 1mA (Typical)

- Output: mV

- Accuracy: ±0.2%FS

- Operating temperature: -40...+125℃

Data Sheet 1

Data Sheet 2
