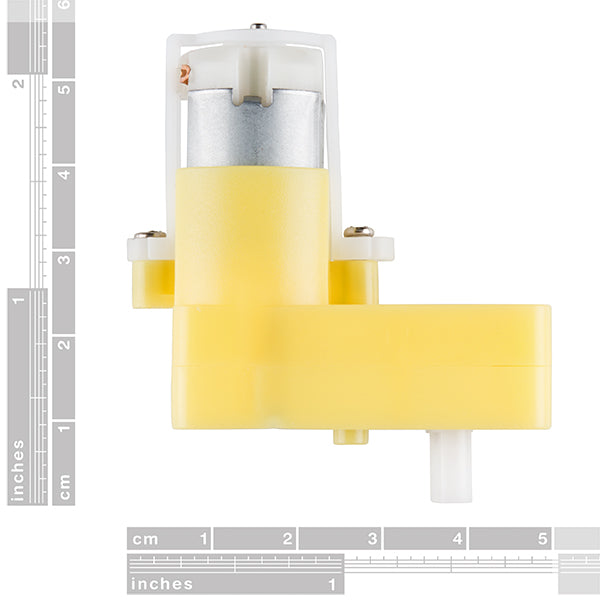

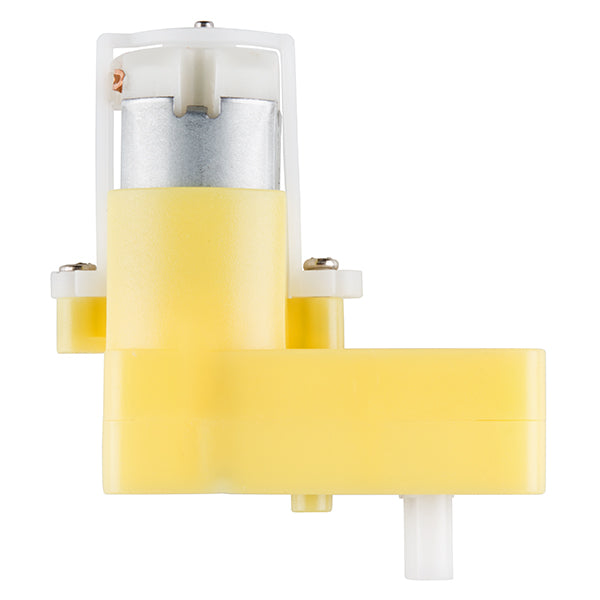

Hobby Gearmotor - 65 RPM (Right Angle, Pair) - (AD17914)

Description:

This is a pair of DAGU hobby gearmotors. These gearmotors are the same ones used in the Magician Chassis and RedBot Kit, providing a low-cost and easy-to-use setup to get your wheels turning. Thanks to their right-angle design, you'll also be able to get your wheels going.

Each gearmotor requires a voltage of 3-6V with a no-load current of 200mA, with a stall current of 3A @ 6V (1.5A @ 3V), a gear ratio of 48:1 and a wheel speed of 65 RPM @ 3V no load.

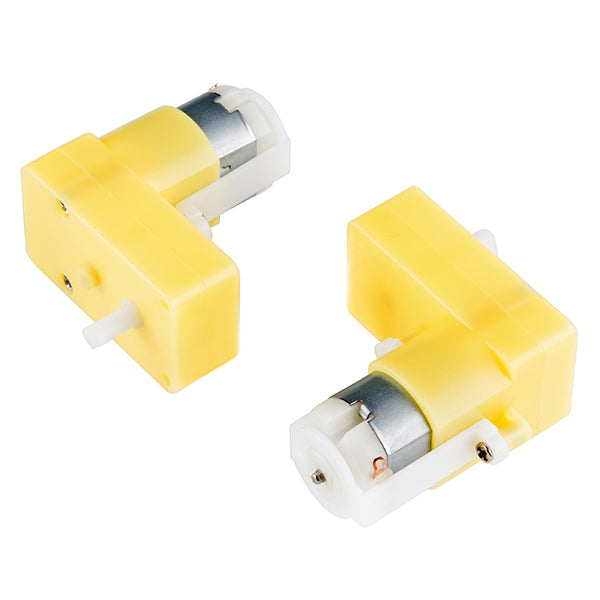

These gearmotors are sold in packs of two.

Features:

• Voltage: 3V – 6V
• No-load Speed: 65 RPM
• No-load Current: 200 mA
• Stall Current: 3 A @ 6V (1.5A @ 3V)
• Gear Ratio: 48:1
• Wheel Speed: 65 RPM @ 3V no load (Recommended)

Documents:

• Datasheet (DG02S)
• Product Video

Reference Link
