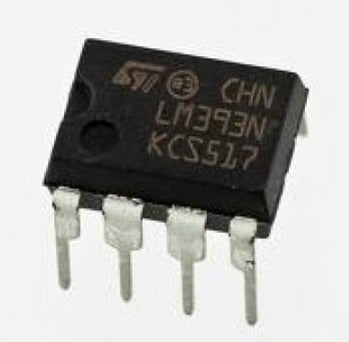

LM393 Low-Power Low-Offset Voltage Dual Comparator - (AD16960)

Description:

The LM193-N series consists of two independent precision voltage comparators with an offset voltage specification as low as 2.0 mV max for both comparators. These comparators were specifically designed to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible, and the low power supply drain is independent of the magnitude of the power supply voltage. These comparators also feature the unique characteristic that the input common-mode voltage range includes ground, even when operating from a single power supply.

Features:

- Voltage Range: 2.0 V to 36 V

- Single or Dual Supply: ±1.0V to ±18V

- Very Low Supply Current Drain (0.4 mA)

- Independent of Supply Voltage

- Low Input Bias Current: 25 nA

- Maximum Offset Voltage: ±3 mV

- Low Output Saturation Voltage: 250 mV at 4 mA
