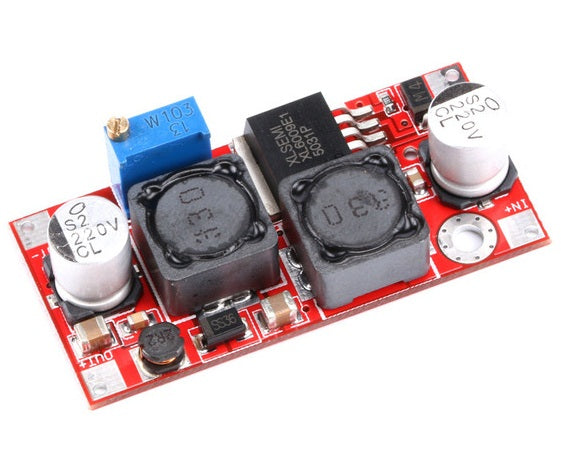

XL6009 Boost DC-DC Adjustable Step-Up Converter - (AD16815)

Description:

This module will automatically adjust the output voltage despite a variation in the input voltage; you can adjust the output voltage to the desired level. This module can step down or step up the output voltage relative to the input. This board is widely used as a voltage regulator in automobiles, solar photovoltaic power, wind power, and other voltage instability applications.

Features:

- Wide input voltage 5V ~ 32V.

- Wide output voltage of 1.25V ~ 35V (with automatic buck-boost, working range, any input voltage can be arbitrarily regulated as output voltage).

- Input current: 3A (max), 18 mA no-load (The higher the output voltage, the higher the load current).

- Conversion efficiency: <94% (higher pressure, lower efficiency), switching frequency: 400KHz, output ripple: 50mV (higher voltage, higher current, higher ripple), load regulation: ± 0.5%, voltage regulation: ± 0.5%, operating temperature: -40 ~ +85.

Some tests you can take as reference:

- Input 3V, Output 12V, 0.4A, 4.8W

- Input 5V, Output 12V, 0.8A, 9.6W

- Input 7.4V, Output 12V, 1.5A, 18W

- Input 12V, Output 15V, 2A, 30W

- Input 12V, Output 16V, 2A, 32W

- Input 12V, Output 18V, 1.6A, 28.8W

- Input 12V, Output 19V, 1.5A, 28.5W

- Input 12V, Output 24V, 1A, 24W

Datasheet
