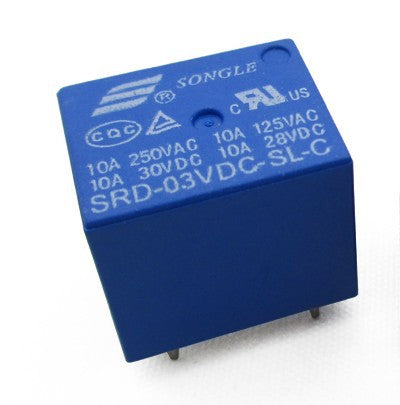

SRD-03VDC-SL-C Relay SPDT 3VDC - (AD16687)

Description:

DC power relays interrupt high-capacity DC loads and high-voltage DC circuits in a compact and quiet design. The switching section and the driving section are gas injected and hermetically sealed, allowing these compact relays to interrupt high-capacity loads. The sealed construction also requires no arc space, saves space, and helps ensure safe applications.

These are single-pole, double-throw (SPDT) protective relays. Use them to switch high voltage and/or high current devices. The coil of this relay is rated up to 3V, with a maximum switching voltage of 250VAC, 28VDC. Contacts are rated up to 10A (at 250VAC; 10A at 28VDC).

Features:

- Switching capacity for 10A in a small-sized design for high-density PCB mounting techniques

- Plastic material selection for high temperature and better thermal performance

- Fully sealed

Coil Specifications:

- Rated voltage: 3V

- Rated current: 150mA

- Resistance: 20 ohm

- Power: 0.45W

Contact Specifications:

- Resistive load capacity: 28VDC @ 10A, 250VAC @ 10A

- Inductive load capacity: 250VAC @ 5A, 28VDC @ 5A

- Maximum voltage: 250VAC

Datasheet
