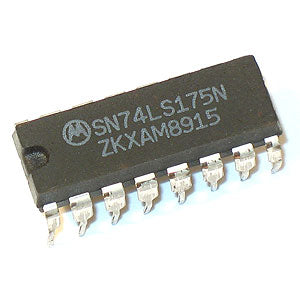

74LS175 D Flip-Flop - (AD1510)

Description:

The 74LS175 is a high-speed quad 'D' type Flip-Flop. This general-purpose device is widely used where clock and preset inputs are common. Information on the 'D' inputs is stored during a LOW-to-HIGH clock transition. A Master-Reset input resets all Flip-Flops, regardless of the 'D' inputs and the clock, when it is in a LOW state.

The LS175 is manufactured with Schottky barrier diodes for high-speed processing and is fully compatible with the Motorola TTL family.

Datasheet
