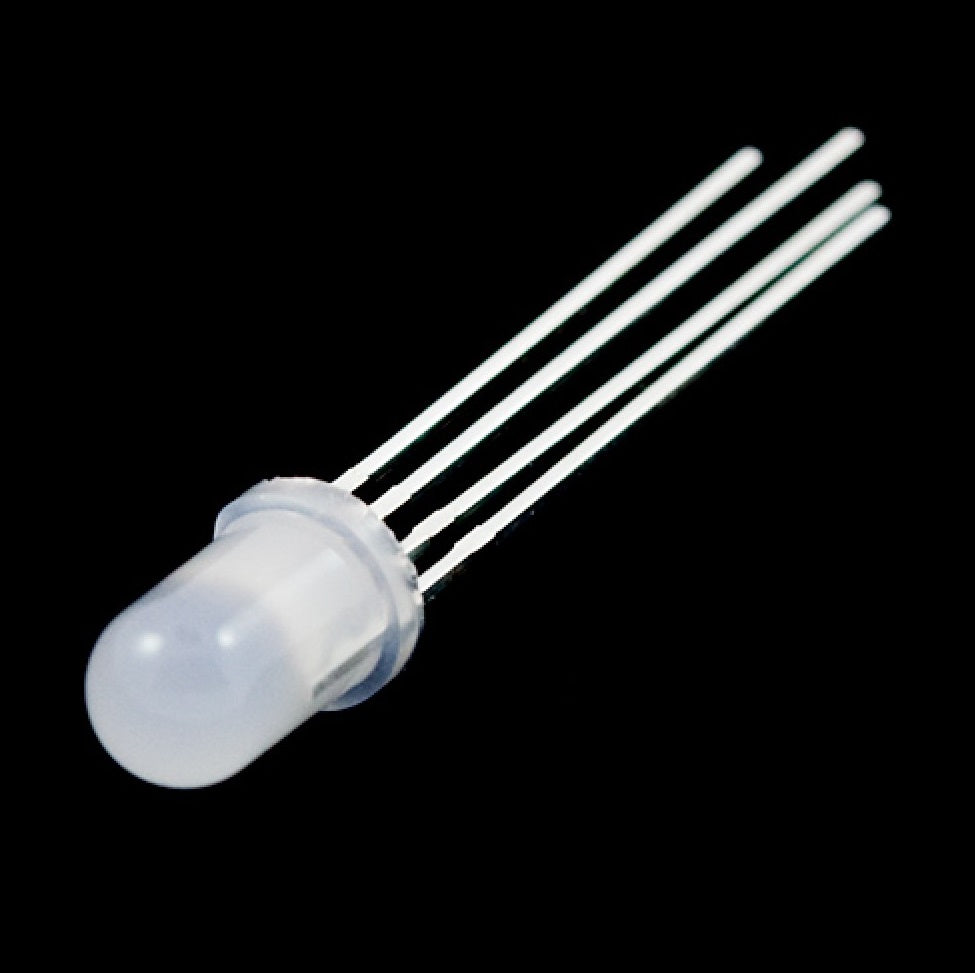

5mm Common Cathode Diffused RGB LED - (AD13920)

Description:

Ever heard of something called RGB? Red Green Blue? How about an RGB LED? These 5mm units have four pins - the cathode is the longest pin. One for each color and a common cathode. Use this LED for three status indicators or pulse width modulate all three and get mixed colors!

Features:

- Common cathode

- Forward Voltage: Red (1.8 - 2.2Volts), Green (3.0 - 3.4Volts), Blue (3.0 - 3.4Volts)

- Reverse Voltage: Red (5000 - 6000Volts), Green (6000 - 7000Volts), Blue (2500 - 3000Volts)

- Light color: Red, green, blue

- Size: 5mm wide x 45mm long

- Pin sequence: Red - Common Anode (positive terminal) - Green - Blue

- Lens color: White

- Luminous intensity: 4000/8000/5000 mcd

- Viewing angle: 25 degrees
