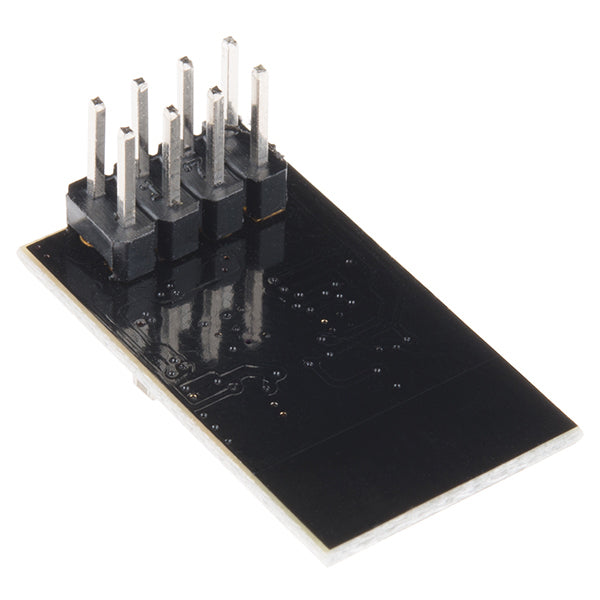

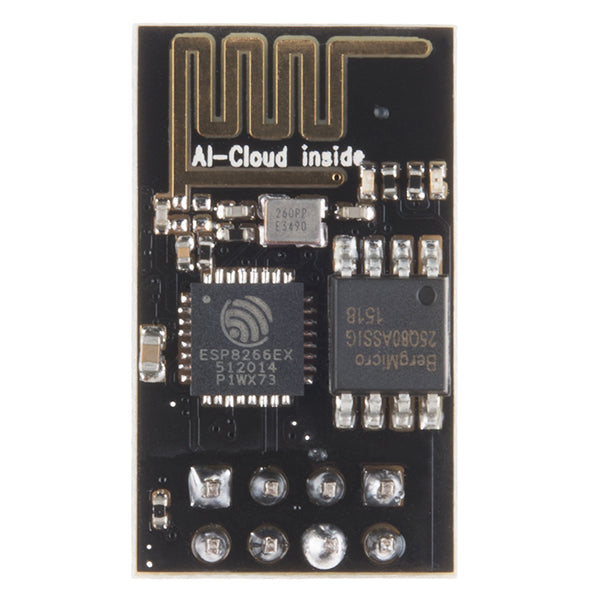

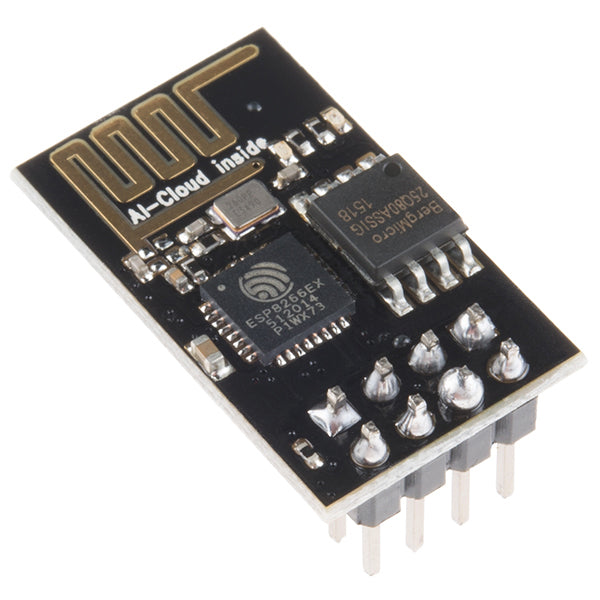

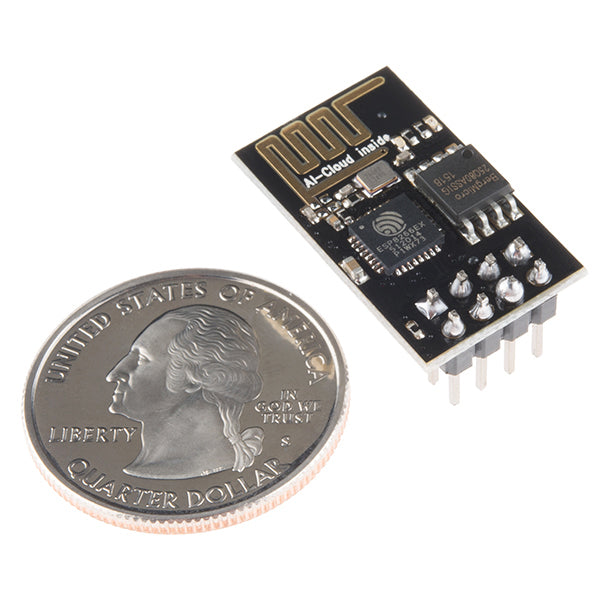

WiFi Module - ESP8266 - (AD1343)

WiFi Module - ESP8266 - (AD1343)

$8.95 USD
$8.95 USD
Sale Sold out

Description:

The ESP8266 WiFi Module is a self-contained SOC with integrated TCP/IP protocol stack that can give any microcontroller access to your WiFi network. The ESP8266 is capable of either hosting an application or offloading all Wi-Fi networking functions from another application processor. Each ESP8266 module comes pre-programmed with an AT command set firmware, meaning you can simply hook it up to your Arduino device and get similar WiFi ability to that of a WiFi Shield (and that’s without all the configuring!). The ESP8266 module is an extremely cost effective board with a huge, and ever growing, community.

This module has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal initial development and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, including the front-end module, and is designed to occupy minimal PCB area. The ESP8266 supports APSD for VoIP applications and Bluetooth co-existence interfaces. It contains a self-calibrated RF allowing it to work under any operating conditions, and requires no external RF parts.

There is a virtually limitless supply of information available for the ESP8266, all of which is provided by amazing community support. In the Documents section, below, you will find many resources to aid you in using the ESP8266, even instructions on how to transform this module into an IoT (Internet of Things) solution!

Note: The ESP8266 module does not support 5-3V logic shifting and requires an external logic level converter. Do not power it directly from your 5V dev board.

Note: This new version of the ESP8266 WiFi Module has increased the flash memory size from 512 kB to 1 MB.

Features:

  • 802.11 b/g/n
  • Wi-Fi Direct (P2P), soft-AP
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLLs, regulators, DCXO and power management units
  • +19.5 dBm output power in 802.11b mode
  • Power down leakage current of <10 uA
  • 1MB Flash Memory
  • Integrated low power 32-bit CPU can be used as application processor
  • SDIO 1.1/2.0, SPI, UART
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation & 0.4ms guard interval
  • Wake up and transmit packets in < 2ms
  • Standby power consumption of < 1.0mW (DTIM3)
