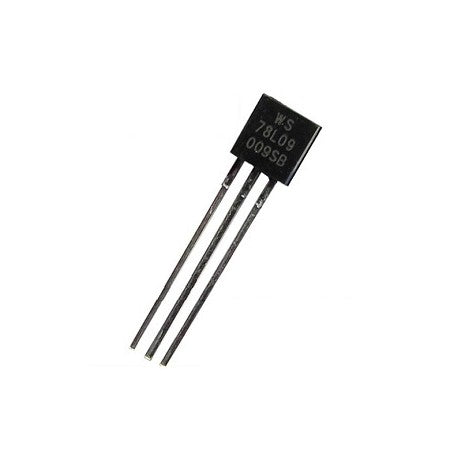

78L09 (TO-92) Voltage Regulator +9VDC @ 100mA - (AD1303)

Description:

The 78L09 is a low-dropout (LDO) linear voltage regulator housed in a compact TO-92 package, providing a fixed 9V output with up to 100mA current. Designed for precision applications, it maintains 5% accuracy across an operating temperature range of -40°C to +125°C. With a minimum dropout voltage of just 1.7V, this regulator efficiently converts input voltages between 11.5V and 23V, making it ideal for battery-powered circuits and embedded systems requiring stable 9V rails. Its three-pin configuration simplifies integration into breadboards and PCB designs. It is RoHS compliant and free of hazardous substances, providing reliable voltage regulation for microcontroller projects, audio circuits, and sensor applications.

Datasheet
