Timing Pulley - Shaft Mount (16T; 6mm Bore) [ROB-12417] - (AD12785)

Description:

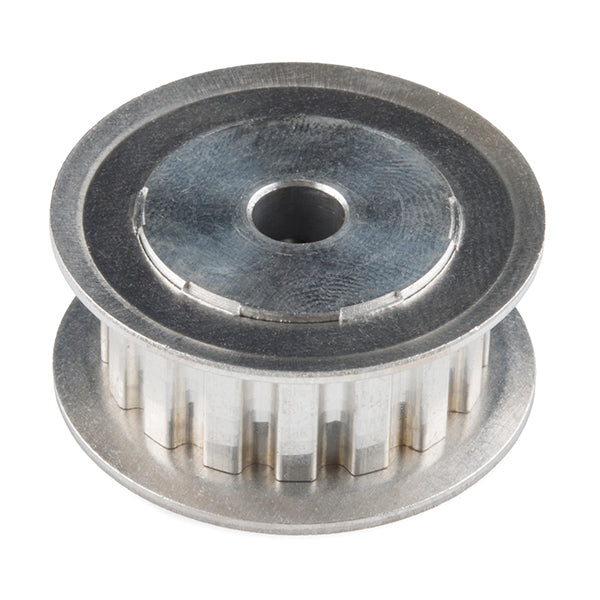

These aluminum shaft mount timing pulleys utilize XL timing belts and attach to a 6mm output shaft by way of a set screw. They have 16 teeth with a 1/5P gear pitch, a 1” OD, 6mm ID, and require a 3/8” belt width.

Actobotics is a robotics construction system based on extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, almost all Actobotics components can be intuitively connected. The wide range of components allows for complex electromechanical prototypes or finished projects to be constructed.

Dimensions:

• Teeth - 16T at 1/5P
• OD - 1”
• ID - 6mm
• Belt Width - 3/8”

Documents:

• SketchUp Part
• Product Page (615386)
