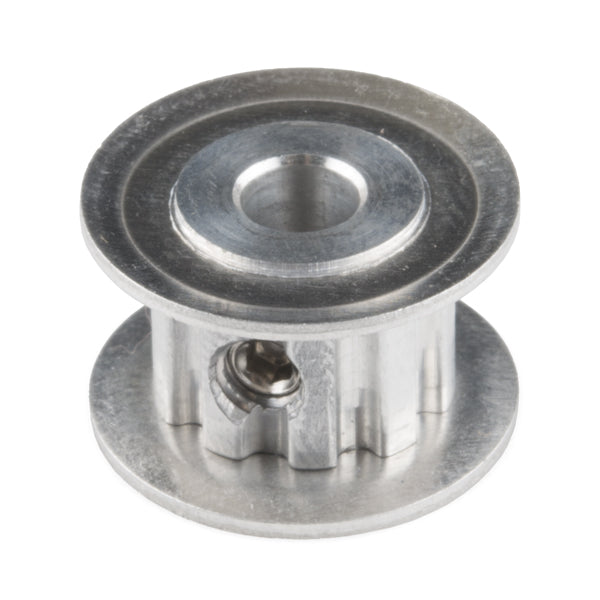

Timing Pulley - Shaft Mount (10T; 6mm Bore) [ROB-12490] - (AD12783)

Description:

These aluminum, shaft-mountable timing pulleys utilize XL timing belts and attach to a 6mm output shaft using a set screw. They have 10 teeth with a gear pitch of 1/5P, a 0.6” outside diameter, a 6mm inside diameter, and require a 3/8” belt width.

Actobotics is a robotics building system based around extruded aluminum channels, gears, precision shafts, and ball bearings. Thanks to the two standardized hole patterns, nearly all Actobotics components can be intuitively connected together. The wide range of components makes it possible to build complex electromechanical prototypes or finished projects.

Dimensions:

• Teeth - 10T at 1/5P
• Outside Diameter - 0.6”
• Inside Diameter - 6mm
• Belt Width - 3/8”

Documents:

• SketchUp Part
• Product Page (615384)
