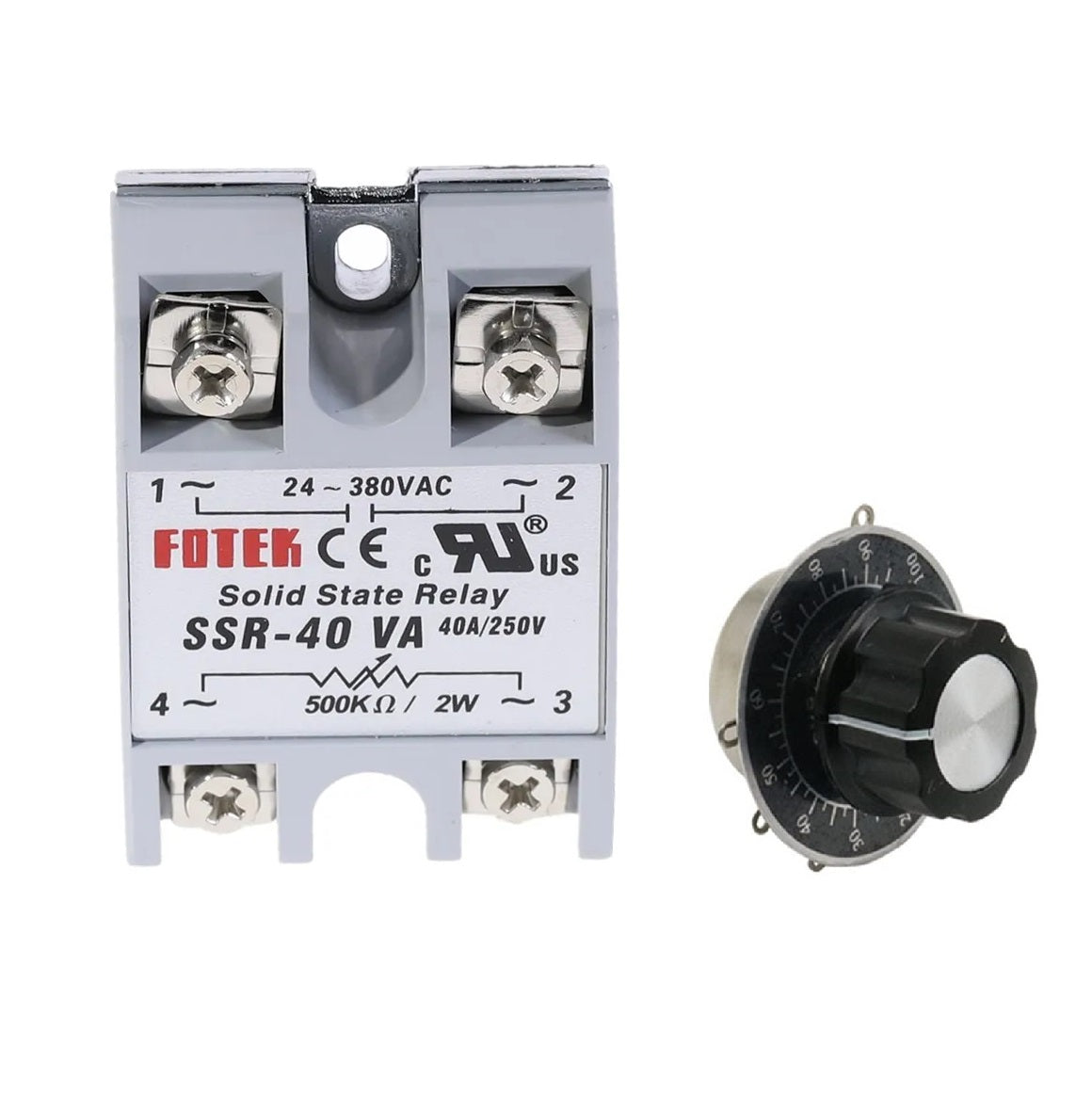

Fotek SSR-40 VA Solid State Relay with External Potentiometer (24 - 380VAC) - (AD12771)

Description:

A solid-state relay (SSR) is just what it sounds like; an IC that acts like a mechanical relay. They allow you to control high-voltage loads from lower-voltage control circuits. Solid-state relays have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and with a much lower current than most mechanical relays. Also, because there are no moving contacts, solid-state relays can switch much faster and for much longer without needing replacement.

They achieve this by using infrared light as the "contact"; a solid-state relay is really just an IR LED and a Phototriac sealed in a small case. Thanks to the fact that both sides of the relay are photo-coupled, you can rely on the same type of electrical isolation as in mechanical relays. These particular solid-state relays can interrupt 380VAC and 40A.

This specific relay has an analog input, and can be used with resistive loads and medium- and long-wave IR lamps. The current range depends on the heat sink and ambient temperature.

For proper operation of the units, a heat exchanger is necessary.

Features:

- Power supply up to 380V

- Total power isolation

- Load Type: Resistance, medium and long wave IR lamp

- Long lifespan and high reliability

- Highly reliable and compact in size

- Designed to offer users maximum simplicity

- Fast switching

- Output voltage: 24 to 380 VAC

- Output current: 40A

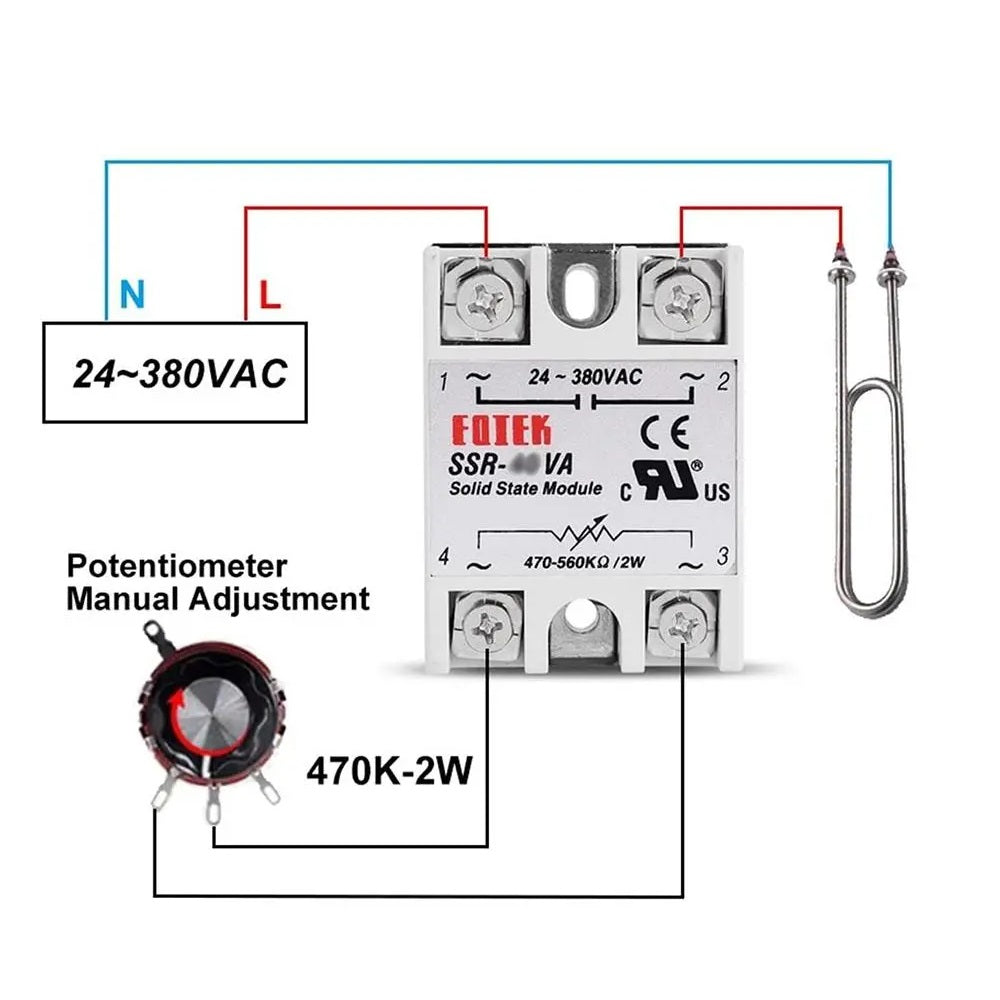

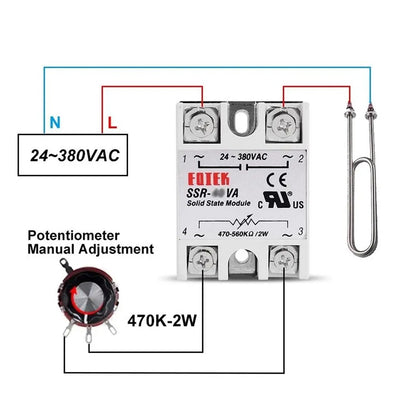

- Input: Simply connect the 470Kohm potentiometer (included)
