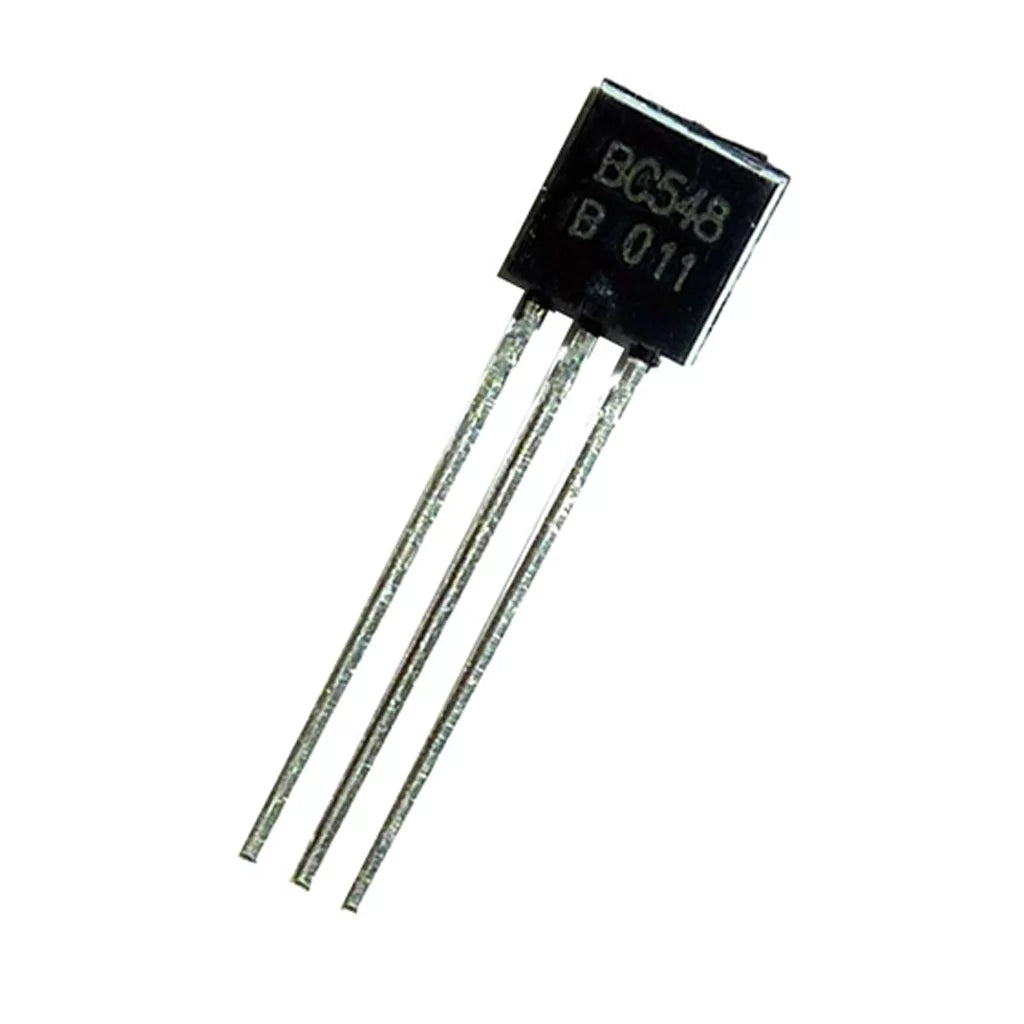

BC548 Transistor BJT NPN 45V @ 100mA - (AD12726)

Description:

This is the BC548, an NPN silicon BJT (bipolar junction transistor). This small transistor can help with your project by using it to drive large loads or for amplifying or switching applications. The BC548 is specifically rated at 45V and 100mA maximum.

Specs:

- Collector-Base Voltage: 50V

- Collector-Emitter Voltage: 45V

- Emitter-Base Voltage: 6V

- Collector current: 100mA

- Power dissipation: 500mW

- Junction temperature: 150°C

- Hfe: 800, Ic=2mA, Vce=5V
