OBD-II to DB9 Cable [CAB-10087] - (AD12639)

Description:

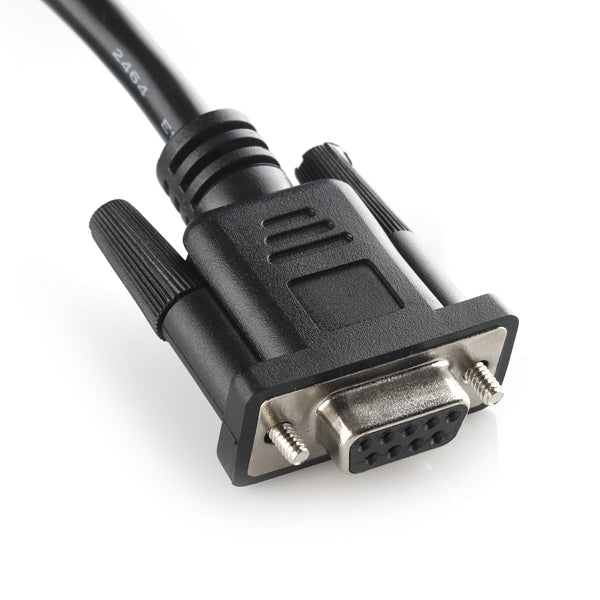

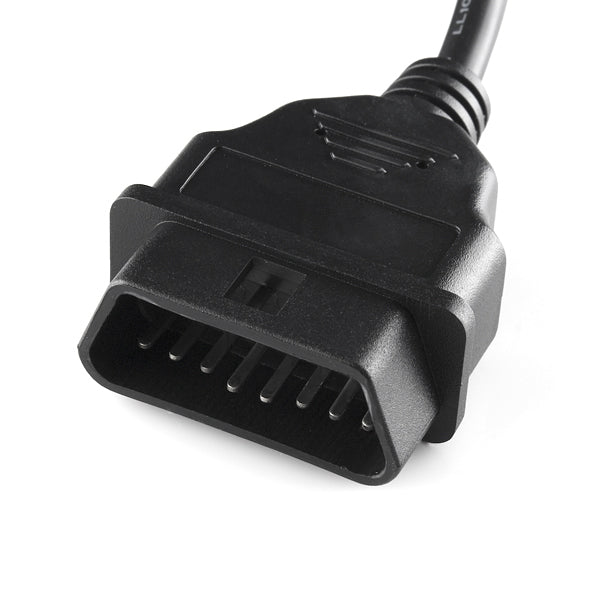

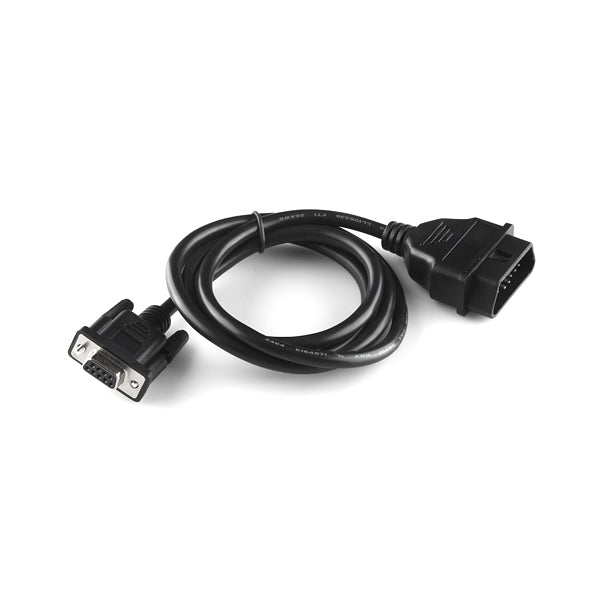

Once you've hacked everything else, why not go out to the garage and hack your car? This cable gives you access to the pins on your car's OBDII connector. It has an OBDII connector on one end and a female DB9 serial connector on the other. The overall cable length is 1.52m.

Note: This cable is not designed to connect directly to a computer's serial port. It is designed to connect to some sort of hardware interface.

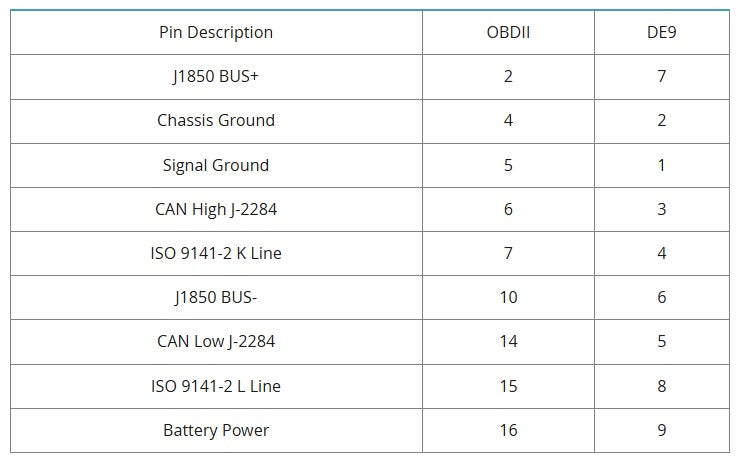

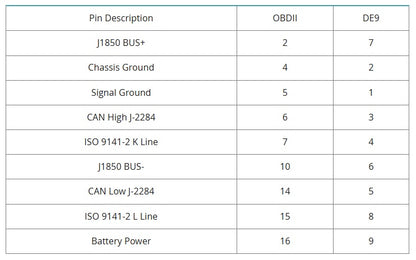

Here is the basic pin assignment (OBDII > Female DB9).

Documents:

• Pinout Diagram
