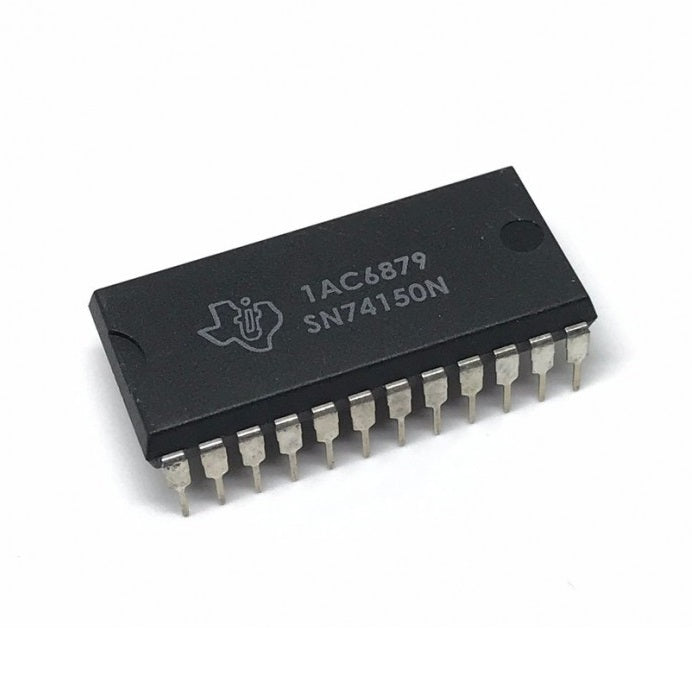

74150 16-Input to 1-Output Multiplexer - (AD126)

Description:

The 74150 multiplexer is a 16-input, 1-output data selector, with 4 selection bits that allow choosing among 16 data sources. Its main function is the conversion of parallel to serial signals and it can also be used as a Boolean function generator. Fully compatible with TTL technology, facilitating its integration into digital systems that require efficient and compact handling of multiple signals.

Features:

- 16 inputs

- 1 output

- 4 selection bits

- 16 selectable data sources

- Parallel to serial conversion

- Also for use as a Boolean function generator

- Fully compatible with TTL technology circuits

Datasheet
