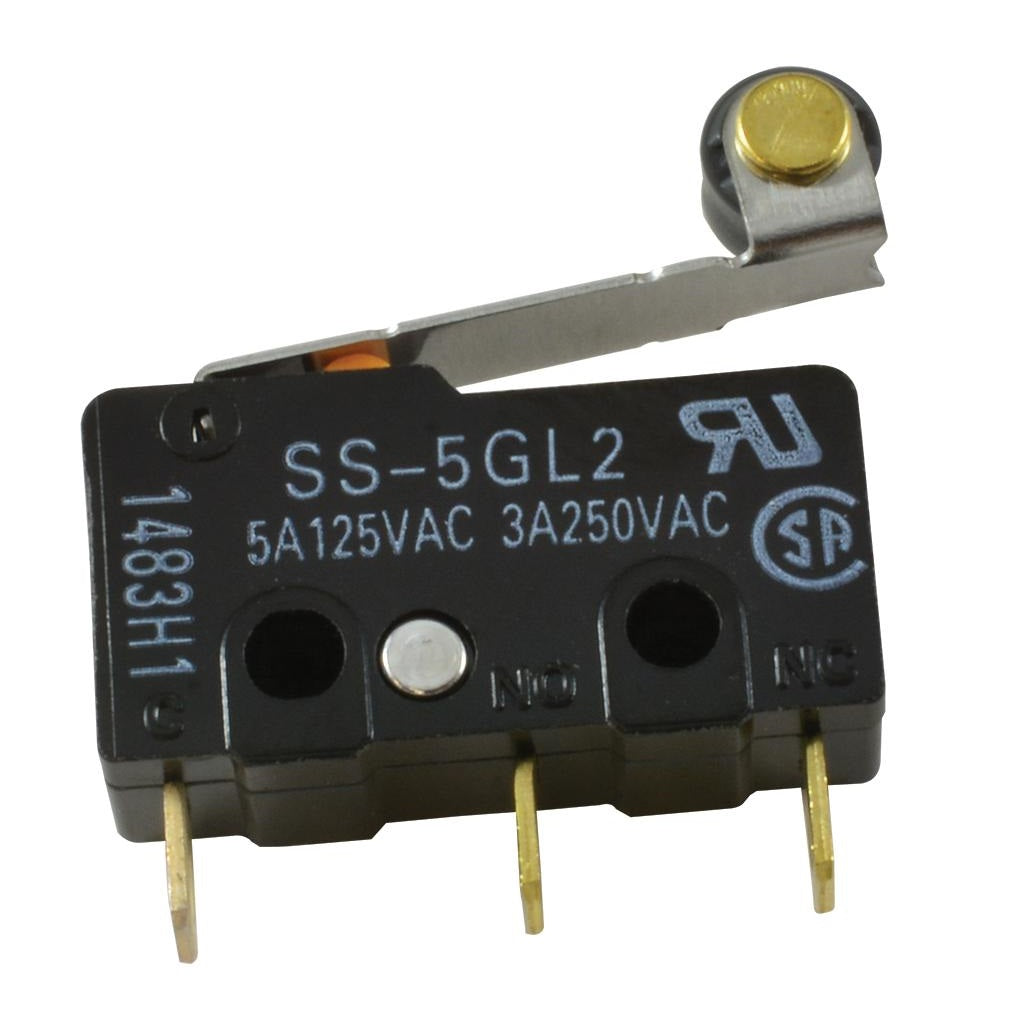

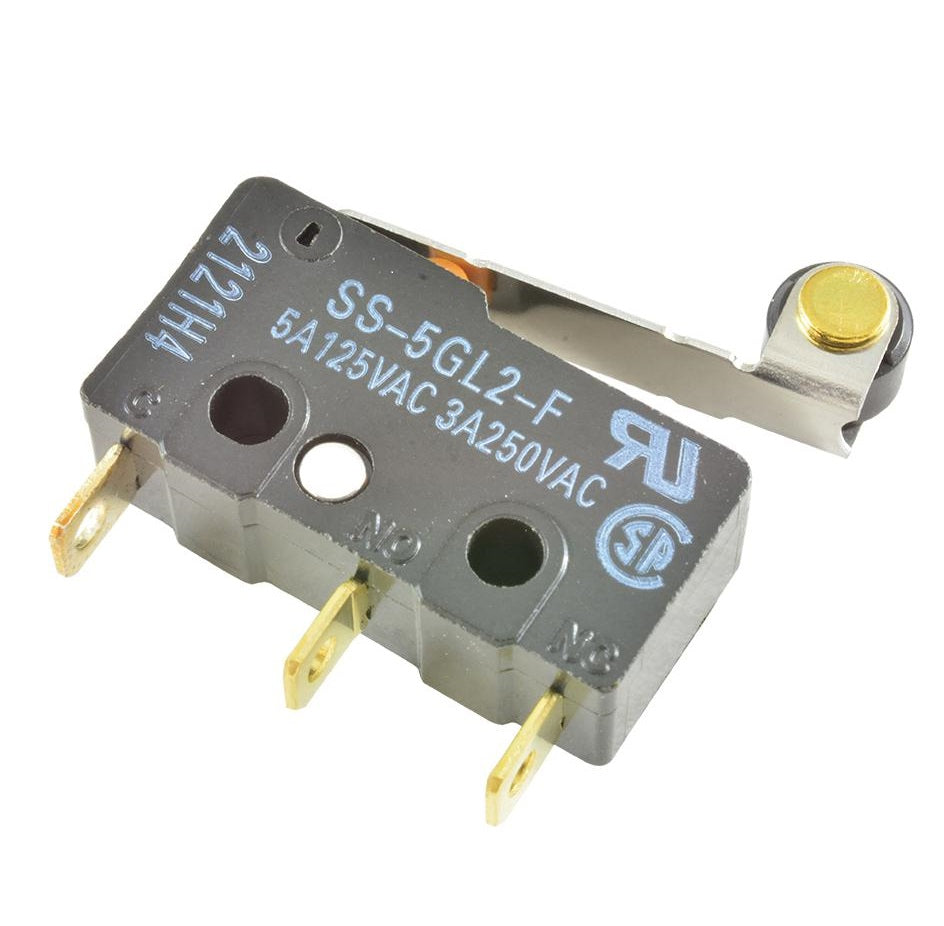

SS-5GL2 Micro Limit Switch SPDT - (AD12317)

Description:

This is a 3-terminal micro switch, equipped with a 19mm offset lever actuator. These switches have a great 'click' sound with a nice tactile feel and are perfect when used for a slider, 3D printer, or robot project. Each micro-switch is rated for 3A at 250VAC.

Features:

- 1 N.O. Contact

- 1 N.C. Contact

- Voltage: 125VAC, 250VAC

- Current: 5A @ 125VAC, 3A @ 250VAC

- Contact Resistance: 0.02Ohm

- Insulation Resistance: 100Mohm

- Temperature Range: -40°C to +70°C

- Size: 20 x 6 x 10mm
