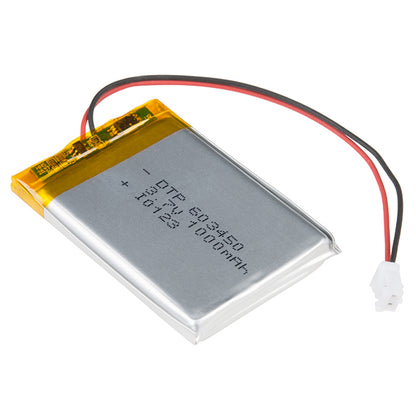

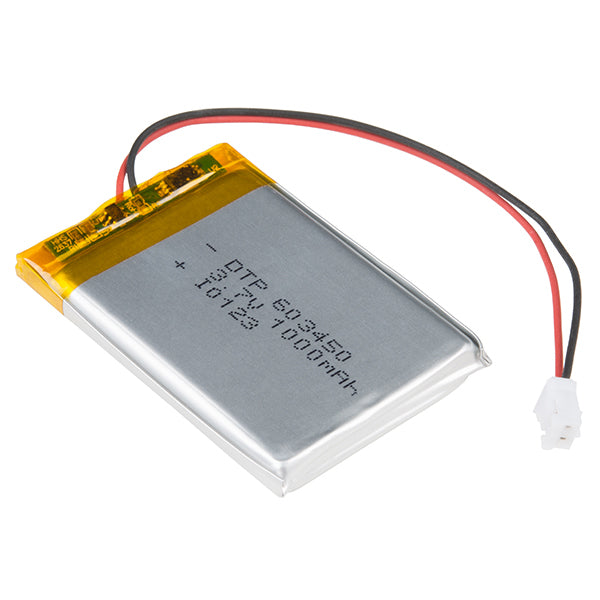

1Ah - Lithium Ion Battery [PRT-13813] - (AD12247)

Description:

These are very thin, extremely lightweight batteries based on the new lithium-ion polymer chemistry. This is the highest energy density currently in production. Each cell outputs 3.7V nominal at 1000mAh! It comes terminated with a standard 2-pin JST-PH connector - 2mm pin spacing. These batteries require special charging. Do not attempt to charge these with anything other than a specialized lithium polymer charger.

Battery includes a protection function against overvoltage, overcurrent, and minimum voltage. Please be careful when using this battery in wearable projects. When using conductive thread, a short in the thread can create sparks and heat. We recommend using coin cell batteries for beginners.

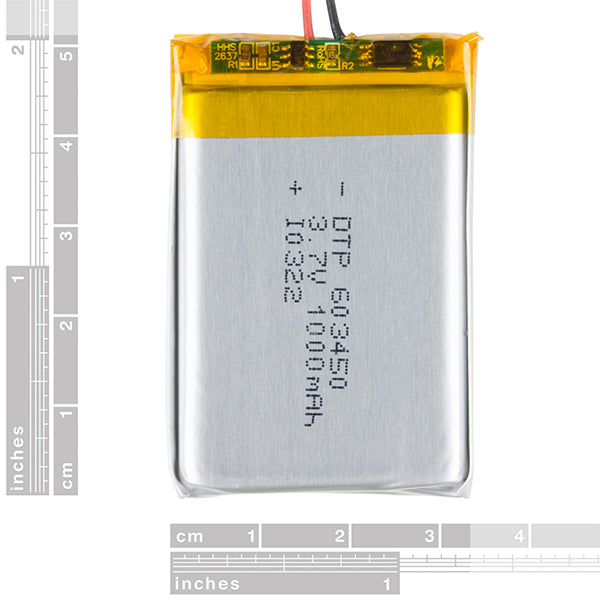

Dimensions: 50.8 x 30.5 x 5.9 mm

Features:

- Excellent long-term self-discharge rates (<8% per month)

- Robust power supply in extreme conditions (-25 to 60 °C)

Documents:

• JST Connector
• MSDS
