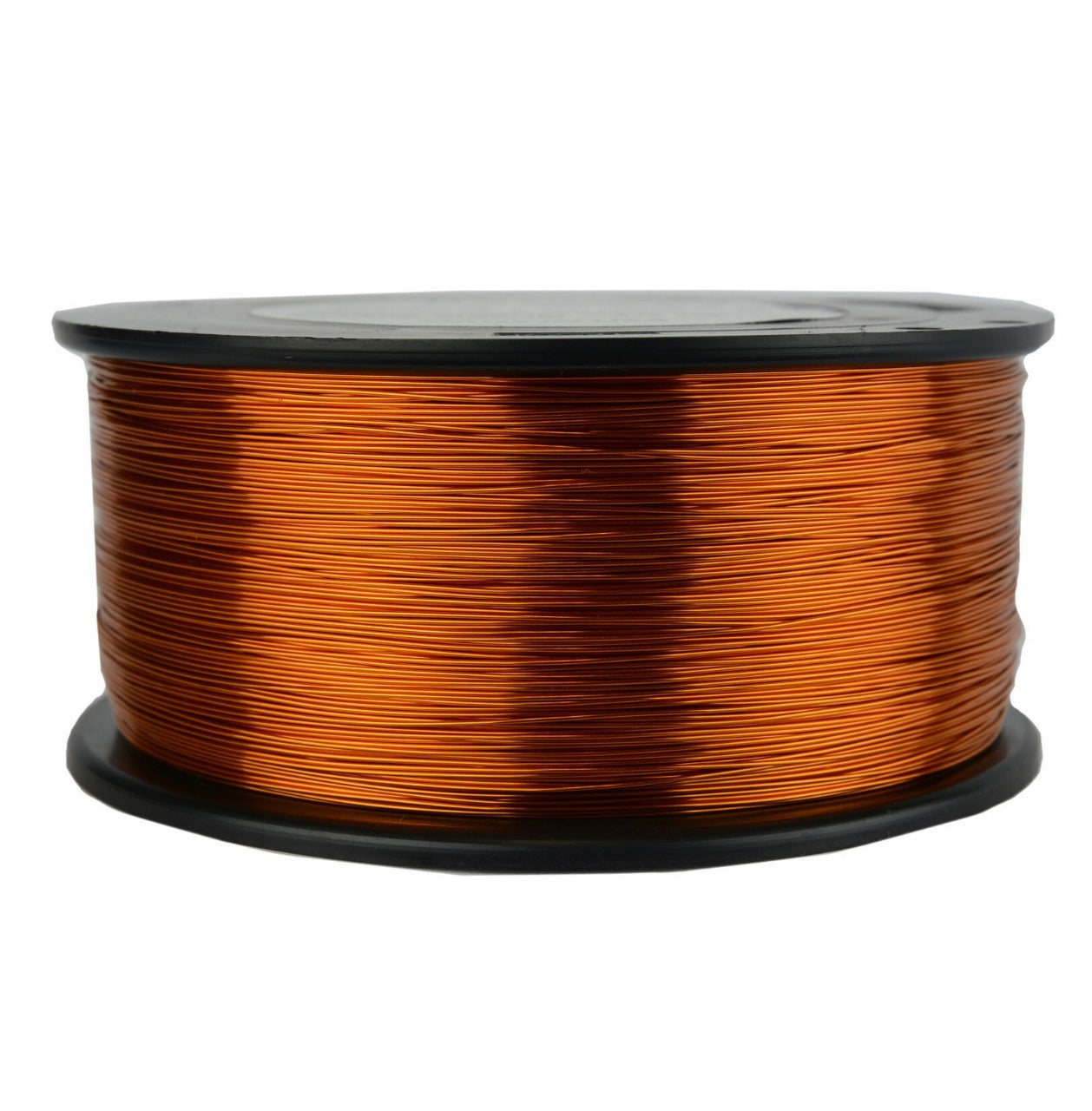

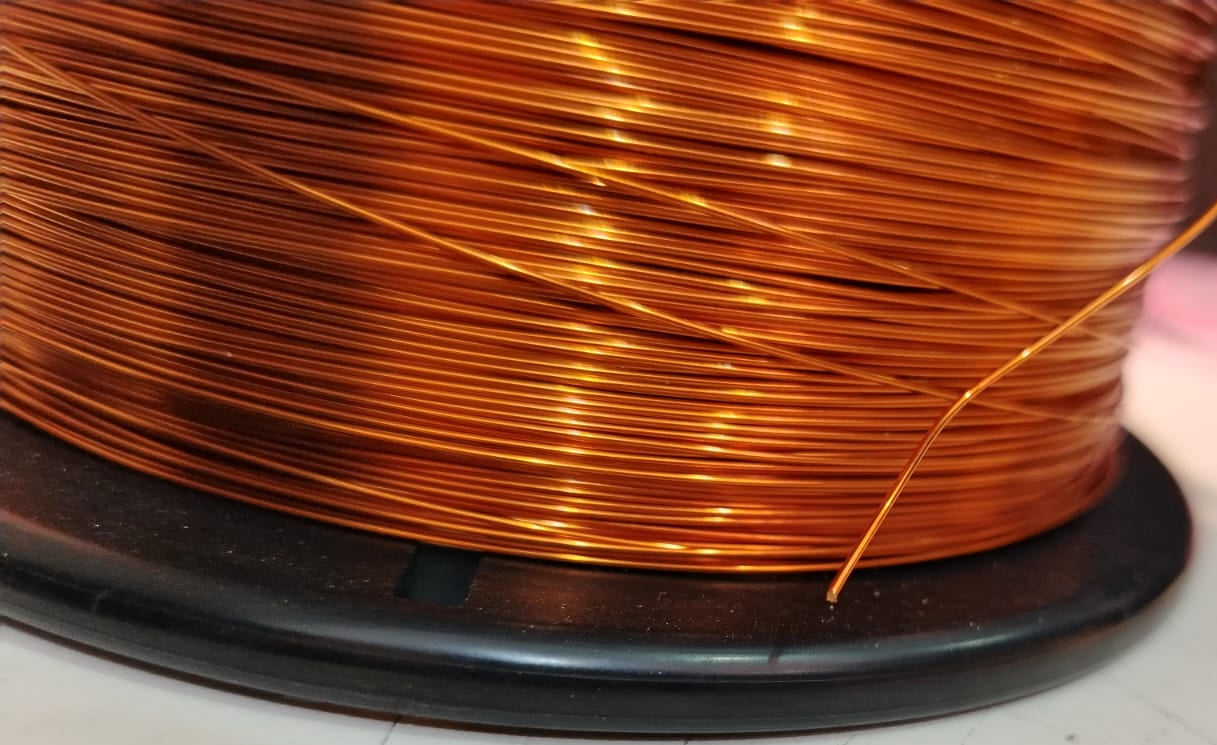

22AWG TEMCo Magnet Wire [METRIC] - (AD11951)

Description:

Magnet wire is very useful, and when you need it, nothing else will do. Whether you're winding a transformer or choke, creating your own motors, or just playing around with electromagnetism in general, nothing beats this thin-gauge enameled wire. Everyone has their own method for removing the enamel insulation and making a connection to this stuff, but a bit of abrasion with sandpaper or scraping with a hobby knife works just fine. If you have an open flame handy, you can also burn off the enamel - just be careful!

Specifications:

- 200°C Copper Magnet Wire

- TEMco MW0201

- Gauge: 22AWG

- Brand: TEMCo USA

- Solid Round Conductor (99.9% Pure)

- Insulation Temperature: 200°C

- Enamel Type: Polyurethane

- Double Enamel: Heavy Duty

- Average Wire Diameter: 0.56642mm

- Color: Amber

- Sold by the METER

Applications:

Appliance motors, relays, clock coils, encapsulated coils, arts and crafts.
