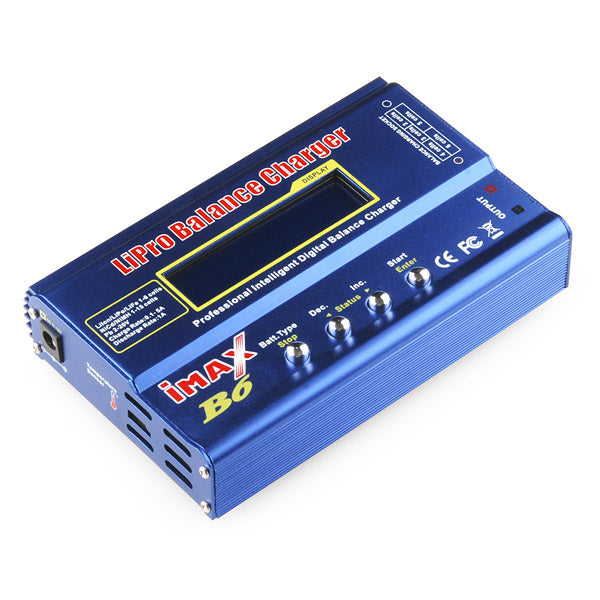

Li-Ion/Polymer Battery Charger/Balancer - 80W @ 5A - (AD11718)

Description:

This charger precisely balances and charges lithium polymer, LiFe (A123), NiCd, and NiMH batteries. It supports up to 6S LiPo/LiFe batteries and up to 15S NiMH/NiCd batteries and displays the voltage of each cell during charging with real-time updates throughout the charge cycle.

The intuitive menu system means that charging and cycling is an easy process and can be done quickly and accurately, whether in the field, using a 12V input, such as a car battery, or at home with a 12V power supply.

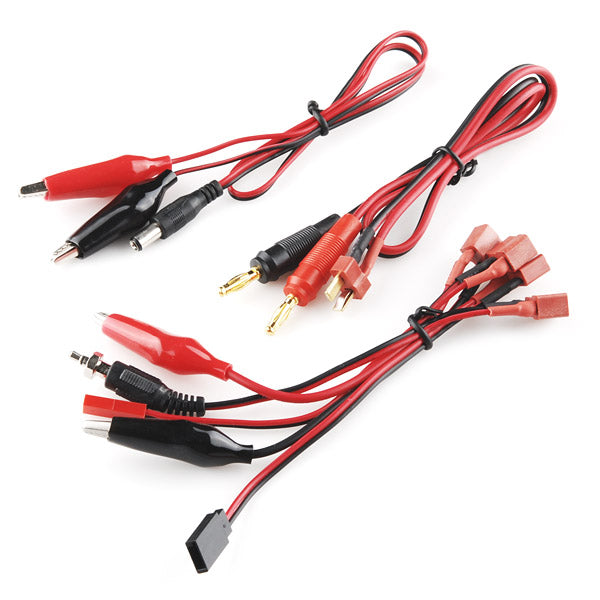

Included with the charger are various input and output cables that should meet almost any charging requirement. This charger has a JST-XH charge plug, making it compatible with Zippy, HXT, iMax, and any packs with a JST-XH adapter.

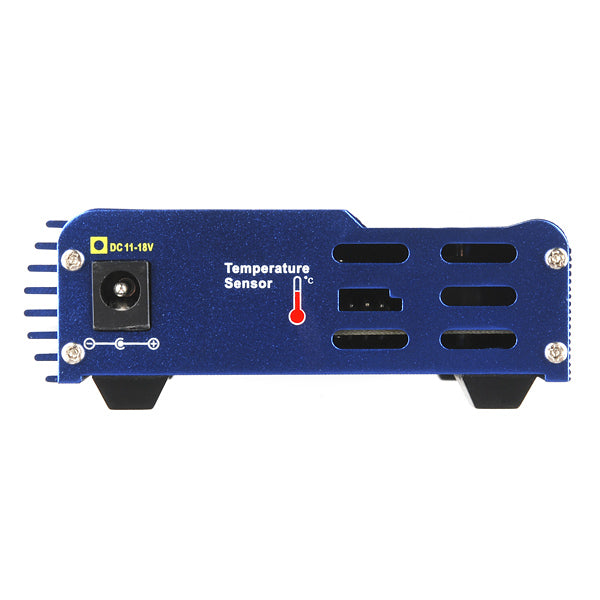

Note: A power supply is not included. The DC input jack is not the same as the standard 5.5mm size we use. It has a larger barrel diameter. Fortunately, it comes with an alligator clip to barrel connector adapter.

Note: Although the casing is labeled Imax B6, it is not the same charger as the more expensive charger with the same name.

Features:

- Ni-MH/NiCd Cells: 1~15

- Li-ion/Poly Cells: 1~6

- Delta Peak Sensitivity (NiMH/NiCd)

- Wide Range of Charge Currents

- Storage Function, Allows Secure Storage of Current

- Time Limit Function

- Input Voltage Monitoring (Protects Car Batteries in the Field)

- Data Storage (Stores up to 5 Packs in Memory)

- Battery Conditioning and Cycling

- Input Voltage: 11~18V

- Circuit Power: Max Charge: 80W / Max Discharge: 5W

- Charge Current Range: 0.1~6.0A

- Lead Battery Voltage: 2~20V* 133 x 87 x 33mm

Documents:

• User Manual
