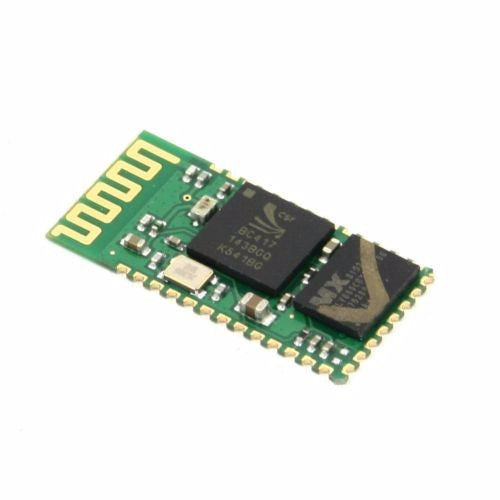

HC-06 Serial Port Bluetooth Module (Slave) - (AD11656)

Description:

Bluetooth Serial Port, replacement for wired serial connections, transparent use. It can be used simply as a serial port replacement to establish the connection between the MCU and the GPS, PC for your embedded project and etc.

Features:

- Uses CSR Bluetooth chip, compatible with Bluetooth V2.0 protocol

- 3.3V Operating voltage

- Adjustable baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200

- Size: 28 mm x 15 mm x 2.35 mm

- Operating current 40 mA

- Sleep current <1mA
