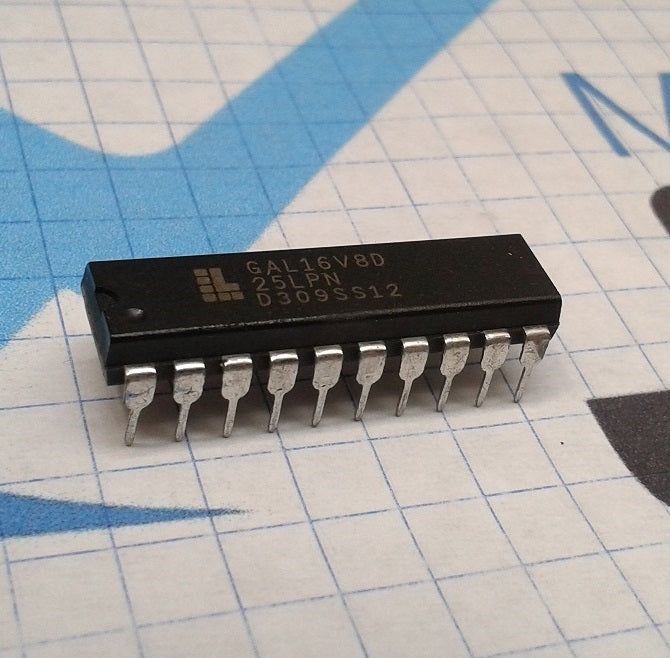

GAL16V8D Lattice Semiconductor - (AD063)

Description:

The Lattice Semiconductor GAL16V8D is a programmable logic device based on E2CMOS technology, packaged in a 20-pin DIP format. It operates at a maximum frequency of 250 MHz, with active high pull-up pins ensuring signal stability. It features 8 macrocell logic outputs, optimized for demanding applications such as DMA control, state machines, and high-speed graphics processing, offering flexibility and performance in advanced digital designs.

Datasheet
