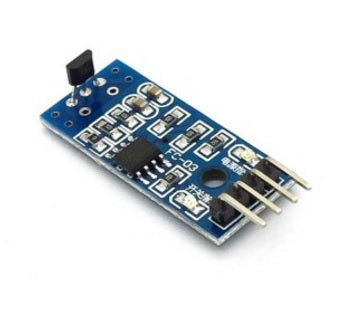

Hall Sensor Velocity Measurement And Counting Module - (AD9762)

Descripción:

Módulo de sensor Hall se utiliza para la detección de campos magnéticos, que adopta el interruptor del sensor 3144E Hall.

Características:

- VCC: connect to positive 3.3-5V

- GND: connect to negative

- DO: Digital signal output on module, outputs low level when magnetism available

- AO: Hall real-time voltage output

Hay dos salidas del módulo:

- AO, Hall real-time output

- DO, the Hall signal output after being regulated by the comparator

Características del módulo:

- Small size: 32mm X 14mm

- With a 3mm mounting screw hole

- You can use 3-5.5v DC power supply

- With Hall real-time output signal

- More stable output signal after being regulated by comparator

- Comparator output capability: 16mA

- With power indicator

- With indicator for comparator output
