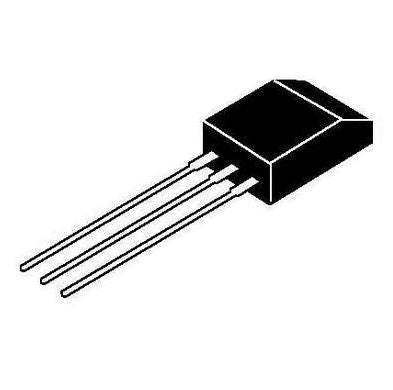

2SD1780 NPN Silicon Transistor 60V @ 1A - (AD37496)

Description:

The 2SD1780 is high hFE transistor, built-in a zener diode at B-C. It is suitable for use to operate from IC without predriver, such as hammer or motor driver.

Features:

- Built in 60V Zener Diode at B-C.

- High DC Current Gain

    hFE = 800 to 3200 (@Vce = 5.0V, Ic = 1.0A)

- Wide 'SOA'

    Vceo = 60 +/- 10V, Ic = 2.0A

- Low Collector Saturation Voltage

    Vce(sat) = 0.20 TYP. (@Ic = 1.0A, Ib = 10mA)
